4002

4002 Overview

The Astra 4002 has been designed purposefully for the narrower FD30 & FD60 fire doors. Suitable for use in Buildings Regulations approved document M applications where a lower power closer is required

4002 Product Safety and Testing

Certification

  • BS EN1634 Approved
  • BS EN1154 Approved
  • FD30 Fire Doors
  • FD60 Fire Doors
  • PAS 24

Applications

  • Doors widths from 750mm – 900mm
  • Reduced Ligature
  • Apartment Entrance Doors
  • Hotel Bedroom Doors
  • Student Accommodation
  • Cubicle Doors
  • Internal Office Doors

Accreditations

  • CERTIFIRE approved Supplement to Certificate numbers CF195, CF198, CF240, CF240A, CF241, CF302, CF380 and CF625 Supplement number 357429
  • PAS24 (Secured By Design) Certificate 050/002

Product:

  • Integrated door control
  • Jamb mounted frame plate hinge side
  • Suitable for use on right and left swing doors
  • Completely concealed when door is closed

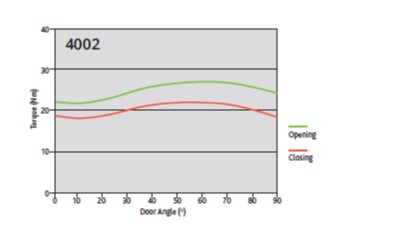

Performance

  • Fixed power EN2
  • Closing force 4° from latch 13Nm
  • Opening force 4° from latch 16Nm
  • Continuous valve control from 90°
  • Maximum opening angle 105°

Functions

  • Adjustable closing speed whilst installed
  • Maintenance free

Test Evidence

  • Continuous in house testing to over 500,000 cycles
  • Fire test conducted in accordance with BS EN1634-1:2000 Test report WF391562
  • EN1154 Performance test report IFCC/001/17078
